In a breakthrough that could potentially revolutionize how we harness energy from wastewater, researchers have developed a novel membrane separator for microbial fuel cells (MFCs) that significantly boosts their efficiency. The study, led by Szabolcs Szakács from the Research Institute on Bioengineering, Membrane Technology and Energetics at the University of Pannonia in Hungary, introduces a polyaniline (PANI) film-coated composite membrane that enhances the performance of MFCs over long-term operation.

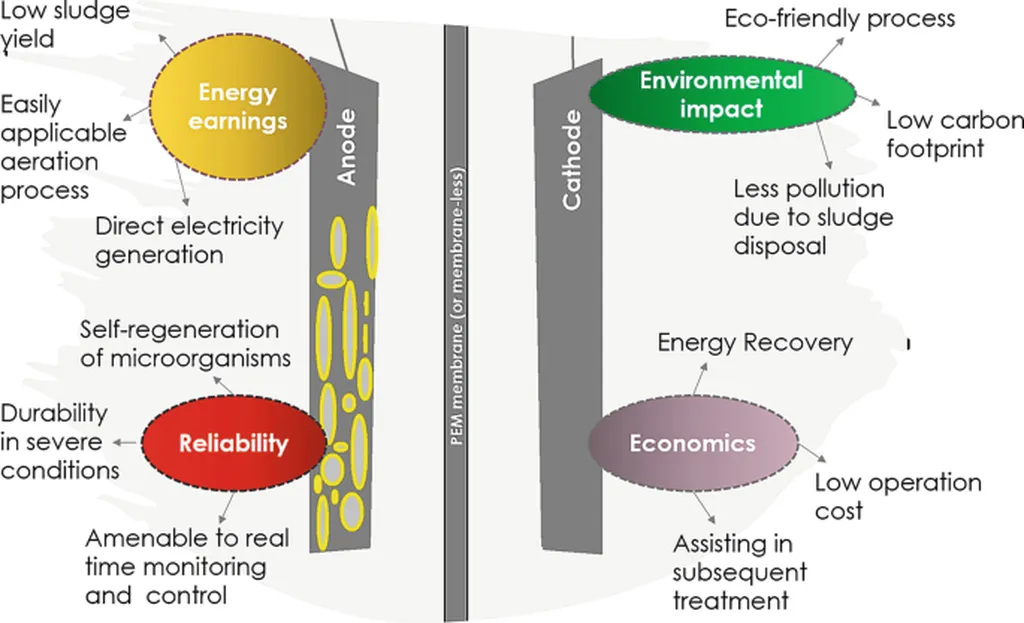

Microbial fuel cells generate electricity by using bacteria to oxidize organic matter in wastewater. However, their efficiency is often hampered by the membrane separators that divide the fuel cell into anode and cathode compartments. These separators can impede mass transport and increase internal losses, ultimately affecting the overall performance of the MFC.
The researchers fabricated a composite membrane by coating a commercial ultrafiltration membrane with a conductive polyaniline layer. This coating was achieved through a cross-linking process, ensuring a uniform and successful application. The PANI-coated membranes were then characterized using various techniques, including scanning electron microscopy and atomic force microscopy, to confirm their structural integrity and uniformity.
Long-term MFC experiments, lasting over 100 days, were conducted using acetate as the sole substrate. The PANI-coated separators demonstrated a marked improvement in electrochemical performance compared to the control ultrafiltration membranes. Specifically, the PANI-MFCs achieved up to two-fold higher peak current densities and nearly threefold higher Coulombic efficiencies. These results indicate that the PANI-coated membranes significantly enhance the energy recovery and efficiency of MFCs.
Electrochemical impedance spectroscopy revealed a reduction in diffusion resistances in the PANI-MFCs, suggesting that the conductive coating facilitates better mass transport. Cyclic voltammetry indicated the presence of multiple redox systems in the anodic biofilms of the PANI-MFCs, whereas the control MFCs showed only one well-defined peak pair. This suggests that the PANI coating promotes a more diverse and active microbial community.
Further analysis using 16S rRNA amplicon sequencing showed that the PANI membranes facilitated the colonization of electroactive microbes such as Geobacter, Hydrogenophaga, and Thauera. These microbes are known for their ability to transfer electrons efficiently, contributing to the enhanced performance of the PANI-MFCs.
The implications of this research are significant for the maritime industry, particularly in the context of wastewater treatment and energy generation. Ships and offshore platforms produce substantial amounts of wastewater, which is typically treated and discharged. By integrating MFCs with PANI-coated membranes, maritime operators could potentially generate electricity from this wastewater, reducing their reliance on traditional energy sources and lowering operational costs.
Moreover, the use of conductive polymer coatings like polyaniline could pave the way for more efficient and sustainable bioelectrochemical systems. As Szabolcs Szakács noted, “The PANI-coated membranes offer both improved energy recovery and favorable bioelectrochemical activity in long-term operation, making them a promising solution for various applications, including maritime wastewater treatment.”
The study, published in the Chemical Engineering Journal Advances (translated from Hungarian as ‘Chemical Engineering Journal Advances’), highlights the potential of innovative materials and technologies to address the energy and environmental challenges faced by the maritime sector. As research in this field continues to evolve, the integration of MFCs with advanced membrane technologies could become a standard practice, contributing to a more sustainable and efficient maritime industry.
In summary, the development of PANI-coated ultrafiltration membranes represents a significant step forward in the field of bioelectrochemical systems. By enhancing the performance of microbial fuel cells, this technology offers a low-cost and effective solution for energy recovery from wastewater, with substantial benefits for the maritime sector and beyond.
